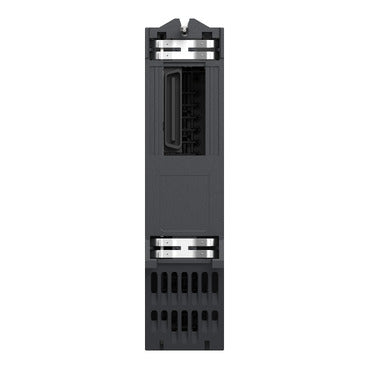

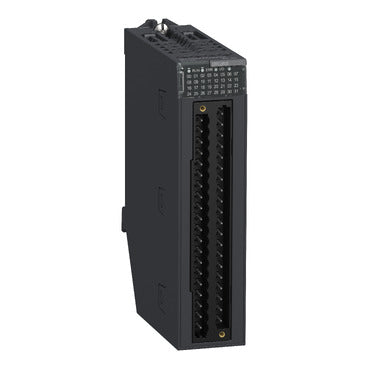

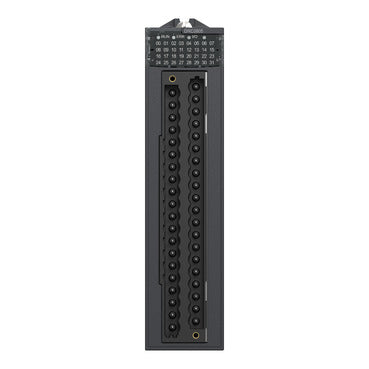

Schneider Electric BMXDRC0805 Discrete Output Module - Modicon X80 Series, 8 Relay Outputs, Adaptable to Harsh Environments

The Schneider BMXDRC0805 discrete output module, belonging to the Modicon X80 series, is designed for industrial automation systems. It has 8 isolated relay outputs (normally open or normally closed) and can operate stably within the voltage range of 24 to 240V AC and 24 to 125V DC. The module has excellent environmental adaptability, complies with the "TC" all - climate treatment requirements, and can operate normally in the temperature range of 0°C to +60°C (32°F to 140°F). Electrical connection is achieved through a 40 - way terminal block, which is convenient and fast. With its high reliability and stability, it can be widely used in many fields such as smart infrastructure, water and wastewater treatment, consumer goods packaging, mining and metallurgy, as well as data centers and power generation, and is a key component in building efficient industrial automation systems.

Product Name: Discrete Output Module
Series: Modicon X80
Output Quantity: 8
Output Logic: Positive or Negative
Output Type: Relay
Output Voltage: DC 5 - 150V; AC 19 - 264V (Specifically refer to: DC 24 - 125V; AC 24 - 240V)
Electrical Connection Method: 40 - way Terminal Block
Network Frequency: 50/60Hz
Network Frequency Limit: 47 - 63Hz
Sensor Power Supply: DC 5 - 150V; AC 19 - 264V
Protection Level: IP20
Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, etc., compliant with EN 61000 - 6 - 5, EN 61850 - 3, EN 61131 - 2 and other standards
Compatible PLCs: Modicon M340, M580 (Local or Remote I/O)
Terminal Type: 40 - way Caged, Screw Clamp, or Spring - type Removable Terminal Block
Mounting Method: Needs to be installed on the rack and fixed with 2 screws
Operating Temperature Range: 0°C to +60°C
Storage Temperature Range: -40°C to +85°C
Insulation Resistance: >10MΩ (500V DC)
Minimum Switching Current: 10mA (5V DC)
Conventional Free Air Thermal Current (ITH): 3A
Dielectric Strength: 2000V AC (50/60Hz, 1 minute)
Output Overload Protection: Use 1 fast - blow fuse per channel or group of channels
Output Overvoltage Protection: Use a discharge diode on each DC output channel; use an RC circuit and a zinc oxide surge limiter on each AC output channel
Output Short - Circuit Protection: Use 1 fast - blow fuse per channel or group of channels
Power Dissipation: <=2.7W
Typical Current Consumption: 100mA at 3.3V DC
Output Response Time: Activation <10ms
Status LEDs: 1 green LED for module operation (RUN); 1 red LED for module I/O status; 1 green LED per channel for channel diagnosis
